M and L Serie

Range of containers corresponding to the prescriptions of the type A packaging
(AIEA 2005)

These packaging are realized for type A transport of all over standard tool contaminated, or material and waste packed.
He can be use for an only parcel or receive another adjustments for putting several materials.

Making entirely stainless steel 3 mm with shock absorbing structure patented
Several sizes are available with an height of 1500 mm
Volume of 0.3 at 8.5 m3 with maxi load in standard of 1500 kgs.
The parcel is get into the packaging by lid who is handling by handles.
In lenght 2850 mm, he can be equiped by ISO corners allowing the jamming on the truck.

Type	Internal sizes in mm			External sizes in mm			Useful load	Total weight in charge	Empty weight	Volume inside
	Length.	Widht.	Height.	Length.	Width.	Height.	kg	kg	kg	m3
M11	1000	1000	500	1158	1238	665	1500	1680	180	0.50
M11X	1120	660	440	1278	898	605	200	335	135	0.32

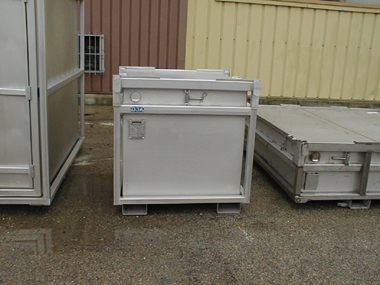

M12	1000	1000	1000	1158	1238	1165	1500	1720	220	1.00
M13	1000	1000	1500	1158	1238	1665	1500	1750	250	1.50
M21	1400	1000	500	1558	1238	665	1500	1710	210	0.70
M21X	1580	1120	440	1738	1358	605	500	680	180	0.78
M22	1400	1000	1000	1558	1238	1165	1500	1750	250	1.40
M23	1400	1000	1500	1558	1238	1665	1500	1800	300	2.10
M31	2000	1000	500	2158	1238	665	1500	1800	300	1.00
M32	2000	1000	1000	2158	1238	1165	1500	1870	370	2.00
M33	2000	1000	1500	2158	1238	1665	1500	1960	460	3.00
M51	2850	1000	500	2991	1238	665	1500	1900	400	1.42
M52	2850	1000	1000	2991	1238	1165	1500	2000	500	2.85
M53	2850	1000	1500	2991	1238	1665	1500	2100	600	4.27

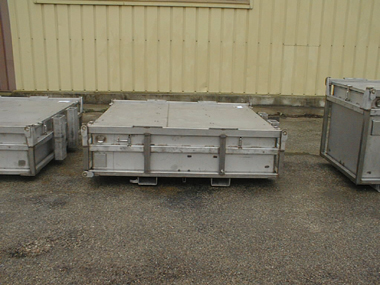

L31	2000	2000	500	2158	2238	665	1500	1950	450	2.00
L32	2000	2000	1000	2158	2238	1165	1500	2050	550	4.00
L33	2000	2000	1500	2158	2238	1665	1500	2150	650	6.00
L51*	2850	2000	500	2991	2238	665	1500	2100	600	2.85
L52*	2850	2000	1000	2991	2238	1165	1500	2250	750	5.70
L53*	2850	2000	1500	2991	2238	1665	1500	2400	900	8.55

(*) Option ISO : external width 2438 mm.
.Internal sizes : take away 100 mm in length and in width inside for the passing of straps.
